Specifications
luminescent road marking paint
1.High skid resistance
2.Weathering resistance

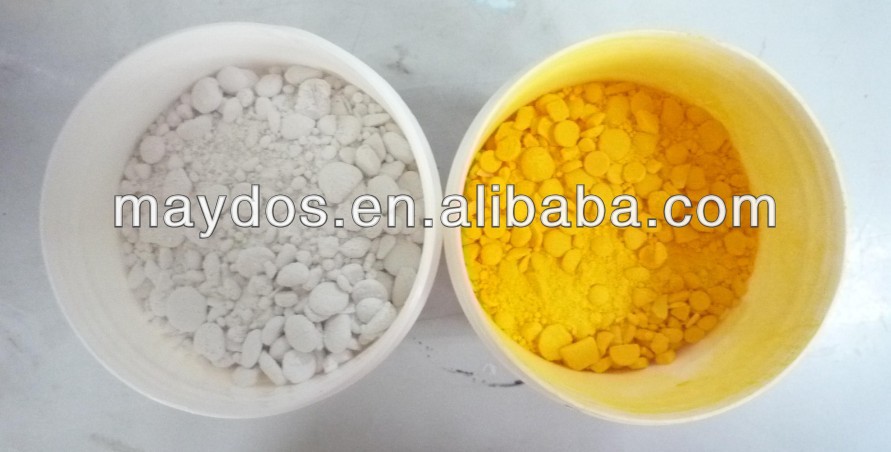

Maydos Eco-friendly fast dry yellow & white luminescent road marking paint
Maydos thermoplastic road line marking paint
is a powder paint which can be used on the concrete and asphalt road surface after melted at 180-200°C by the special heating equipment. The melten material can be screeded,extruded or sprayed on the road surface in varying thickness from 1.5MM to 5MM.It’s made from high quality imported raw materials, such as ,titanium(Australia),plasticizer(Japanese) and it has the features of good hiding power, high temperature and ultraviolet rays resistance.
Widely used on cement and asphalt ground as parting line, sign and warning line etc.
Shelf Life For Store:
One year
Technical Data:
Color | White ,yellow,Orange,ect | |
Anti-slip degrees | >45 | |
Thickness | 0.7-2.5MM | |
Drying time | 3 mintues | |
Fineness micron | ≥0.07—0.35 | |
Consumption | New cement pavement | 4.5kg/sqm(Thickness:1.8mm) |
New asphalt pavement | 5kg/sqm(Thickness:1.8mm) | |
Micro Glass Beads | 0.3kg/sqm | |
Primer | 0.15kg/sqm | |
www.maydospaint.net
Relative machine recommended:
1. Thermoplastic road line marking Machine.
| BPMD-01 | BPMZ-02 | BPMX-03 | ||
Engine | 12/13KW Electric startup water-cooled diesel engine | ||||
Oil Tank Volume | 50L. gear pump output volume: 40ml/r | ||||
Hydraulic system | BM type hydraulic motor | ||||
Heating Temperature | 0-300°C(Heating temperature for paint<220°C) | ||||
Cylinder Volume | 500kg*2 | 375*2 | 300kg*2 | ||
Weight | 980kg | 850kg | 700kg | ||
Size(mm) | 1730*1850*1710 | 1580*1850*1680 | 1430*1750*1600 | ||
Ventilation system | 3 ventilation chimneys and two inner air- pressure chimneys | ||||
Construction | International standard welding frame,corrosion–resistant stainless steel plate shell,upright paddle stir balde and thermal insulating materials between the cylinder and the shell. | ||||
